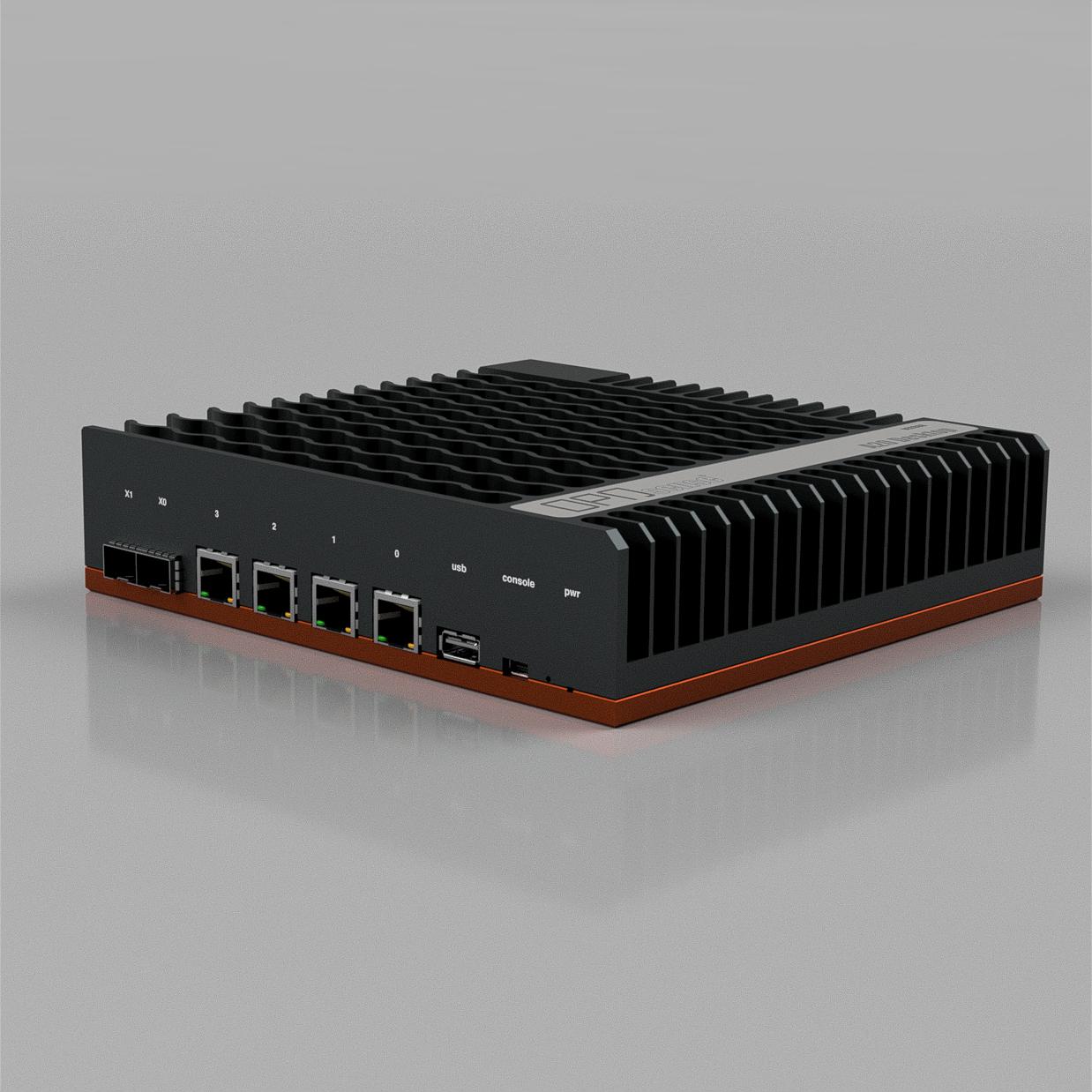

DEC850 OPNsense® Desktop Security Appliance

AMD EPYC™ Performance.
The first embedded appliance that delivers high performance yet doesn’t make a sound.
The specially designed cooling profile allows for cool operation even when stressed to the max.

NEW! (Version 2 only) Now comes with 3x 2.5GbE!

Models	DEC850 v2
Software
Preinstalled software	OPNsense®
License	Open Source + 1 year free Business Edition
Hardware Specifications
SFP+ Ports [10Gbps]	2
GbE RJ45 [10/100/1000Mbps] / 2.5GbE [100/1000/2500Mbps] Ports	4x 2.5GbE
USB 3.0 Ports	2
Console Port	1
Internal Storage	256GB M.2. Solid State Flash
Memory	16GB DDR4
CPU Cores	8 (max frequency 3.1Ghz)
Virtual Interfaces (802.1q VLANS)1	4093
System Performance
Firewall Throughput	17.4Gbps
Firewall Packets Per Second	1450Kpps
Firewall Port to Port Throughput	9Gbps
Firewall Port to Port Packets Per Second	1450Kpps
Concurrent Sessions	15000000
New Connections Per Second	50000
Firewall Latency (average)	100us
Firewall Policies (Recommended Maximum)1	10000
IPsec VPN Throughput (AES256GCM16)	2.5Gbps
IPsec VPN Packet Per Second (AES256GCM16)	220Kpps
Threat Protection Throughput Packet Per Second	163Kpps
Threat Protection Throughput	~2Gbps
High Availability with State Synchronisation	Requires Two
Dimensions
Height x Width x Length (mm)	48 x 199 x 186
Height x Width x Length (inches)	1.89 x 7.83 x 7.32
Form Factor	Desktop (optional Wallmount)
Weight (appliance only)	2.0 Kg
Weight (appliance + power supply / ac cord)	2.7Kg
Environment
Power Requirements	100-240VAC, 50-60Hz
Maximum Current (AC)	1.4A
Power Consumption (Typical)	45W
Heat Dissipation	153.6 BTU/hr
Operating Temperature	0 to +50°C
Storage Temperature	-20 to +70°C
Humidity	10-90% non-condensing
Regulatory Compliance
	FCC part 15 Class A, CE, Rohs
