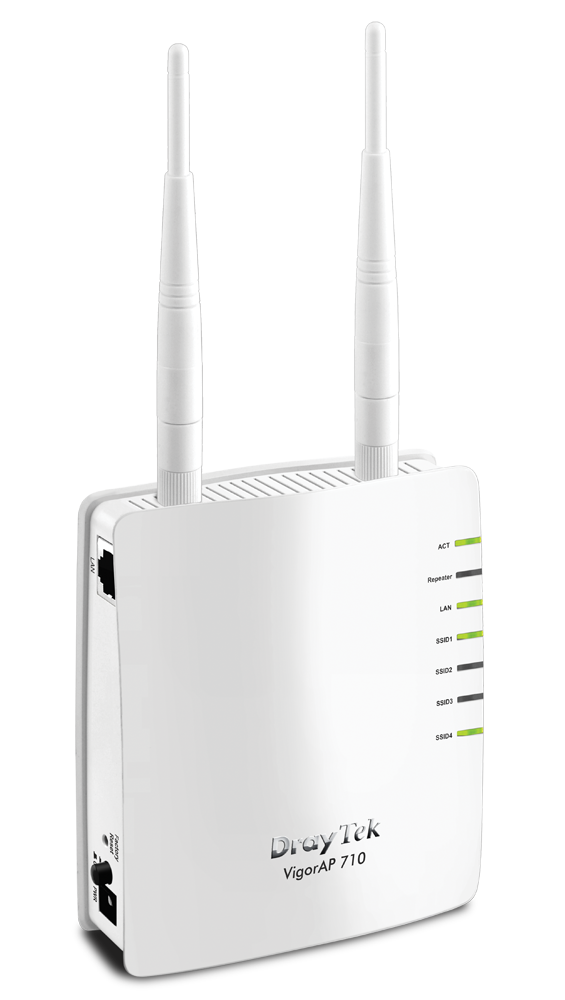

DrayTek Vigor AP-710 Wireless Access Point
The DrayTek Vigor AP-710 is a standalone wireless access point, ideal for adding wireless connectivity to an existing LAN, or for expanding the range of an existing wireless LAN by using the WDS features. It can also be used as part of the DrayTek managed wireless system (see details here).
Wireless Security & VLANs
The AP-710 features multiple levels of wireless security. Encryption using WEP, WPA, WPA2 (802.11i) is available you can also use the access control list (ACL) to specify the hardware addresses of clients which are permitted to connect (by MAC hardware address). Any unauthorised hardware is refused access.
For additional user authentication, you can activate 802.1x RADIUS (Remote Authentication Dial-in User Service) which allows you to centrally manage and store user names and passwords either within the AP-710 setup itself (thus not needing any external server) on an external radius server which can permit time limited, temporary or continuous access to your clients as required.
The Vigor AP-710 supports the 802.1q VLAN protocol so that if it is connected to an 802.1q enabled LAN, it can split tagged data (whether its different subnets or intended for different users) and broadcast each on its own SSID.
This means, for example, that your guest WiFi access is provided on a separate isolated SSID with no access to your company data/devices.
Central Management with DrayTek VigorACS
The DrayTek VigorAP 710 can be managed by the DrayTek VigorACS central management system – a cloud platform which can manage most DrayTek products – routers, wireless access points and Ethernet switches, giving you complete visibility and control of your DrayTek product estate, even without a DrayTek Vigor router on site.
The DrayTek VigorACS management system can be used to configure and provision DrayTek VigorAP access points, similarly to performing these actions through the VigorAP’s web interface, with a familiar menu layout in the Configuration section of VigorACS.
Profiles for groups of access points can be provisioned in VigorACS by selecting a VigorACS network, then accessing Configuration > AP Profile to configure profiles and apply them selectively.
DrayTek’s VigorACS management monitors the VigorAP 710, with a Dashboard view giving a central overview of the most important information from the VigorAP’s current status.
Central Management with a DrayTek Router
For further details of the central management feature, click here .
The VigorAP 710 can operate in standalone autonomous mode, but can also form part of a centrally managed wireless installation by adding a compatible DrayTek wireless controller such as the Vigor 2862 router. This enables you to centrally control, manage and administer multiple AP devices installed around your building/campus. Management also enables efficient usage of your wireless access point through load-balancing, whereby wireless clients are distributed across several access points to reduce congestion.
The DrayTek router operating as the wireless controller can provision DrayTek VigorAP access points using the Central AP Management profiles configured on the router, with an option to Auto Provision – auto configuring newly installed VigorAP access points with the Auto Provisioning profile, upon initial connection to the DrayTek Vigor router’s network.
For additional security, wireless access can be restricted to authorised users only by use of a unique username and password for each user. This is in addition the encryption provided by WEP/WPA etc. When the user first opens their wireless connection, the AP-710 will request their username/password and not permit access to the LAN or Internet without it.
The AP-710 can use an external radius server to hold user credentials but also has its own built-in radius server to store up to 96 users. The AP-710’s built-in Radius server can also act as a server to additional devices (such as another VigorAP, meaning that you don’t need to set up the same users up on several units).
