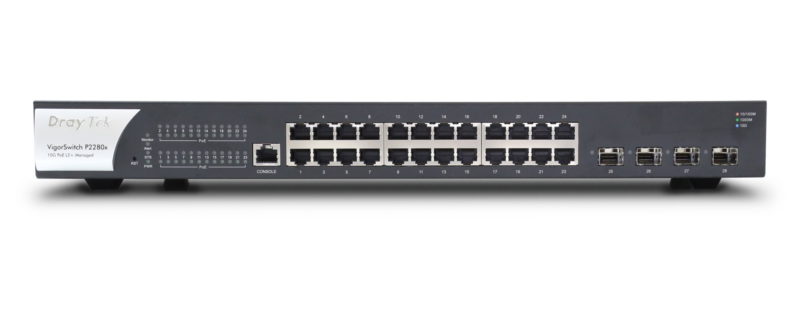

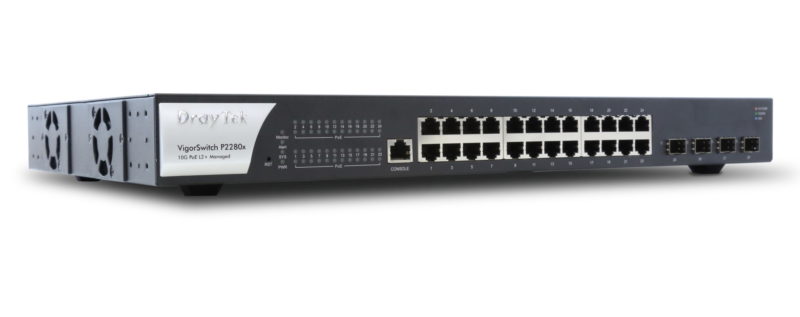

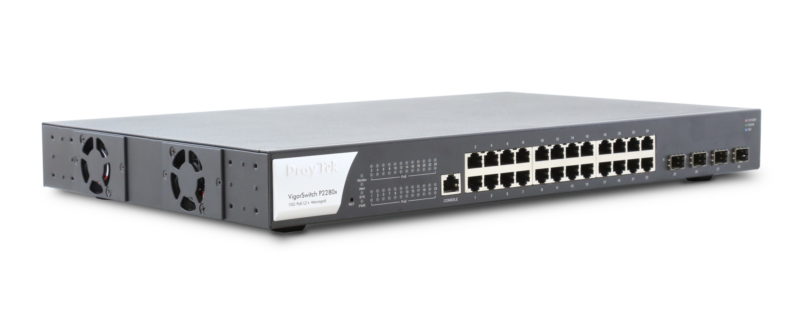

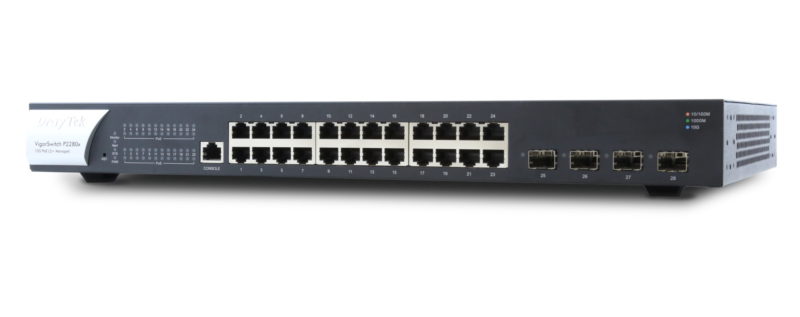

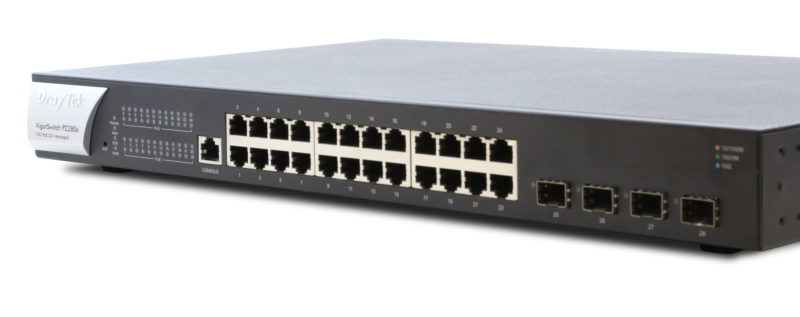

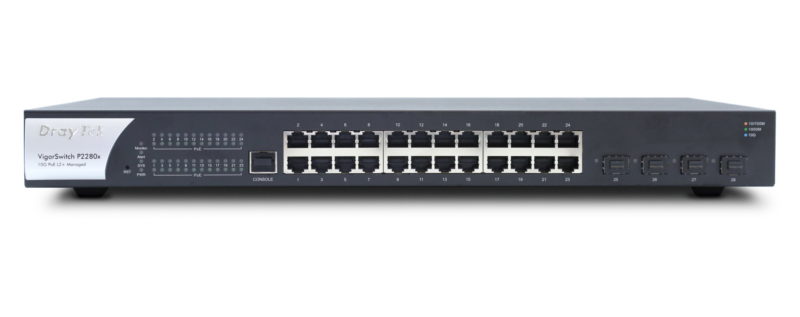

DrayTek VigorSwitch P2280X 24-Port Gigabit PoE+ + 4 port 10Gb/s Switch
400W PoE Power Budget
Provides ample power through Ethernet to each of the 24 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & monitoring features ensure your PoE devices are powered and working.
Benefits: Power a large number of IP cameras, IP phones, wireless APs and other PoE devices.
Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek’s Central Switch Management for Vigor routers, or directly via the device’s Web Interface.
Benefits: Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.
Great Security Features
Protect your network against unauthorised access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Check the features sections for more information.
Benefits: Secure & control access to your network.
Voice VLAN & Surveillance VLAN
Automatically assign VLANs and QoS configuration to devices with matching MAC address OUI upon connection to the switch.
Benefits: Reduce broadcast traffic and allow more control when implementing security policies.
High Speed 10 Gigabit SFP+ Uplinks
4 SFP+ ports allows your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.
Benefits: Easily increase network throughput and meet demanding bandwidth requirements.
Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.
Benefits: Provides a fast and secure bridge between networks.
Monitor switch temperature, power supply and fan status to ensure stable & constant operation. The switch’s fans run quieter with Smart fan control.
Benefits: Email notification alerts for power loss, downtime or configuration changes.
Smart power management & IEEE 802.3az compliant. If a non-PoE device is connected, that port’s PoE power is turned off to avoid any potential damage to non-compliant devices.
Benefits: Reduces power consumption.

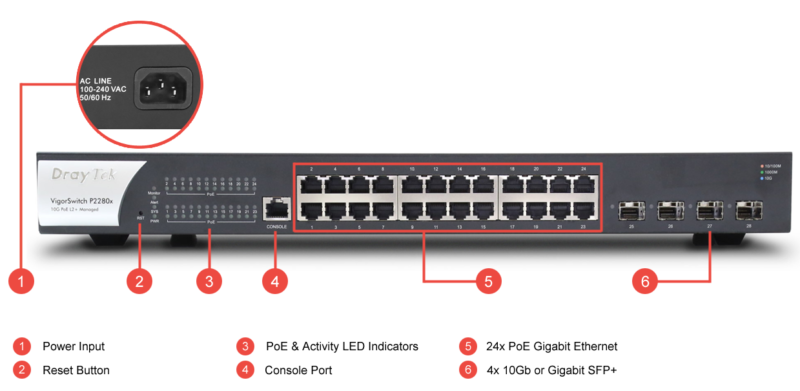

10GbE Gigabit Switch with 24 Gigabit PoE+ Ports & 4 10GbE SFP+ Uplink Ports
The VigorSwitch P2280x is a high-performance, L2+ Managed Gigabit Ethernet switch. With 24 PoE+ (Power over Ethernet) RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports for high bandwidth uplinks to Servers, Network Attached Storage and Switches.
The 400 watt PoE power budget provides ample power through Ethernet, to each of its 24 PoE / PoE+ enabled Gigabit LAN ports. Supporting up to 30 watts per port, it can easily power a large number of IP cameras, IP phones, wireless APs and other PoE devices.
Use the 4 SFP+ ports for high speed uplinks between Switches, Servers and Network-Attached-Storage at up to 10 Gigabits per port.
Designed for centralised management, the VigorSwitch P2280x can be provisioned and monitored through both the VigorACS management platform and/or, a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.
